- VPI/VFD Suitable
- Thermisters
- Roller Bearing
- Insulated Bearing
- Space Heater
- Forced cooling
- T.B Location: LHS / RHS

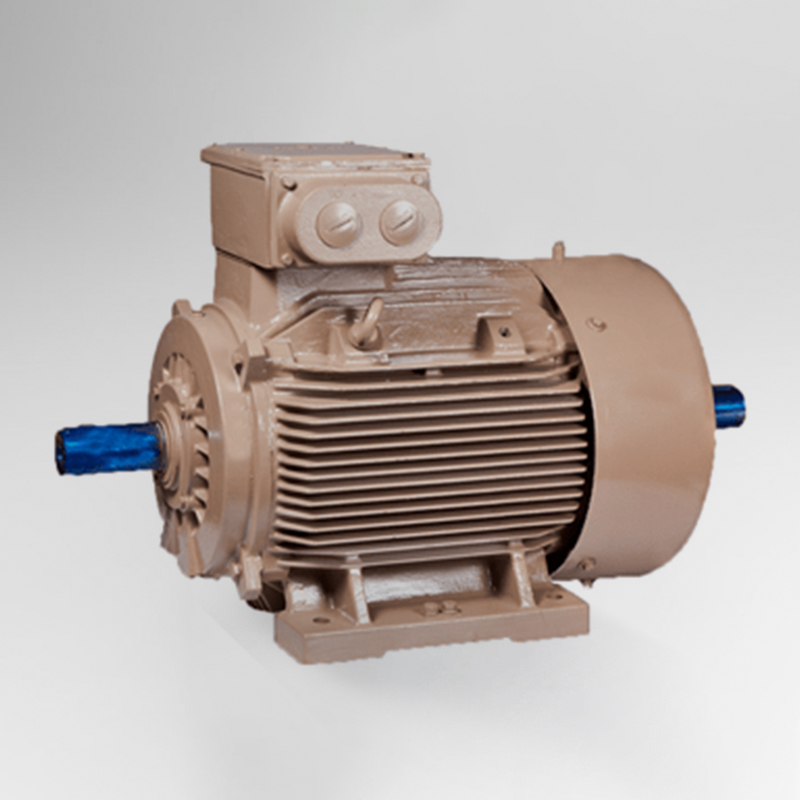

We (We Tech Power Solutions Ltd) are the Authorised Dealer of Bharat BijleeCrane Duty Squirrel Cage Motors having range from 0.37 KW to 200 KW & 0.5 HP to 270 HP. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Bharat BijleeCrane Duty Squirrel Cage motors are available in 1500 RPM, 1000 RPM and 750 with respect to 4 Pole, 6 Pole and 8 Pole with cast iron body. This motors are compatible with S3, S4 & S5 duty with CDF 25 / 40 / 60& 60 / 150 / 300 Starts per hour. Available Frame sizes are from 71 to 315 frame. Mounting options are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting), B14 (Face Mounting) available with Terminal Box Position at TOPSide.Bharat Bijlee Crane Duty Squirrel Cage motors are available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection. Ambient temperature of Bharat Bijlee IE2 motors are 20 °C to +45° C. This motors are also available with specialties i.e. VPI / VFD Suitable, IGT, Double Shaft Extension, T.B Location: LHS / TOP.
Warranty: Motors are covered by warranty under proper use, for faulty material or workmanship for 12 months from the date of commissioning or 18 months from the date of dispatch whichever is earlier.
| Specification | Standard Product | Option |
|---|---|---|
| KW / HP | 0.37 To 200 KW / (0.5 To 270 HP) | - |
| RPM / Pole | 1500 RPM (4 Pole) | - |
| RPM / Pole | 1000 RPM (6 Pole) | - |
| RPM / Pole | 750 RPM (8 Pole) | - |
| Frame Size | 71 To 315 | - |
| Mounting | B3 Foot Mounted | - |
| - | B5 Flange Mounted | - |
| - | B35 Foot cum Flange Mounted | - |
| - | B14 Face Mounted | - |
| Duty | S3 / S4 / S5 | - |
| CDF | 25 / 40 / 60 | - |
| Stats/ Hr | 60 / 150 / 300 | - |
| Ambient Temperature | 45 °C | - |
| Body Enclosure | Cast Iron | - |
| Duty | S4 | - |
| Enclosure | TEFC | - |
| Insulation class | F Class | - |
| IP degree of protection | IP55 | - |
| Terminal Box Location | TOP | - |
| Voltage | 415 V +-10% | - |
| Frequency | 50 Hz +-5% | - |
| Motor Name | PRICE & AVAILABILITY |
|---|---|
| BHARAT BIJLEE MAKE CRANE DUTY MOTOR 0.75 KW 1 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE CRANE DUTY MOTOR 2.2 KW 3 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE CRANE DUTY MOTOR 3.7 KW 5 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE CRANE DUTY MOTOR 5.5 KW 7.5 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE CRANE DUTY MOTOR 7.5 KW 10 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE CRANE DUTY MOTOR 11 KW 15 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE CRANE DUTY MOTOR 22 KW 30 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE CRANE DUTY MOTOR 30 KW 40 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE CRANE DUTY MOTOR 37 KW 50 HP, 1000 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
