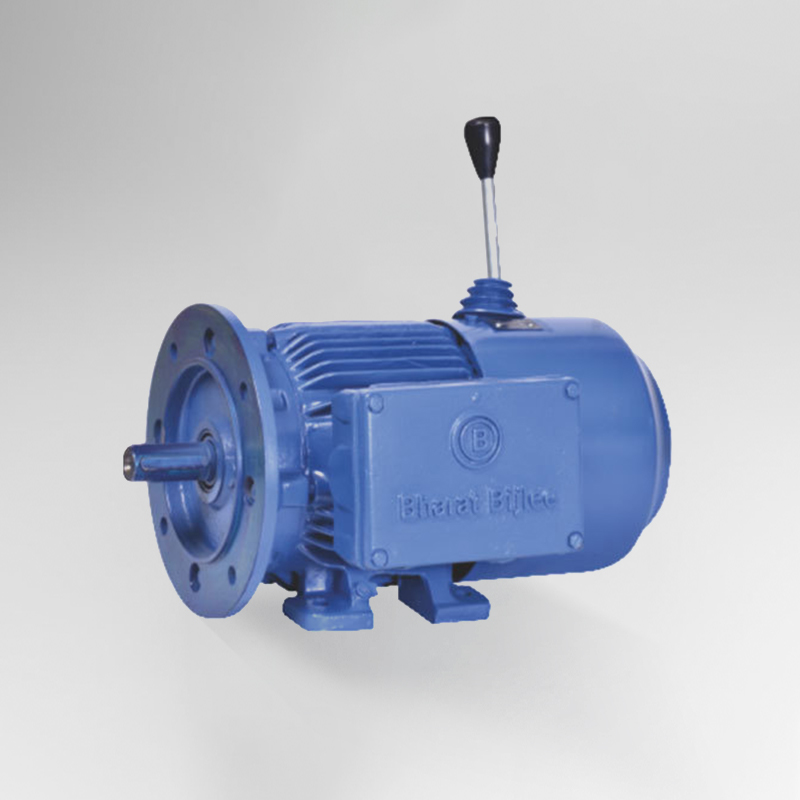

- Manual release handle (Above 2 Hp Motors)
We (We Tech Power Solutions Ltd) are the Authorised Dealer of Bharat Bijlee Brake Motors having range from 0.25 KW to 9.3 KW & 0.33 HP to 12.5 HP with DC Brakes having manual release handle for above 2 hp motors. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Bharat Bijlee Brake Motors are available in 1500 RPM, 1000 RPM & 750 RPM with respect to and 4 Pole, 6 Pole & 8 Pole with cast iron body. This motors are compatible with S1 & S4 duty. Available Frame sizes are from 71 to 132 frame. Mounting options are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting) available with Terminal Box Position at RHS Side.Bharat Bijlee Brake Motors are available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection.
Warranty: Motors are covered by warranty under proper use, for faulty material or workmanship for 12 months from the date of commissioning or 18 months from the date of dispatch whichever is earlier.
| Specification | Standard Product | Option |
|---|---|---|
| KW / HP | 0.25 To 9.3 KW / ( 0.33 To 12.5 HP) | - |
| RPM / Pole | 1500 RPM (4 Pole) | - |
| RPM / Pole | 1000 RPM (6 Pole) | - |
| RPM / Pole | 750 RPM (8 Pole) | - |
| Frame Size | 71 To 132 | - |
| Mounting | B3 Foot Mounted | - |
| - | B5 Flange Mounted | - |
| - | B35 Foot cum Flange Mounted | - |
| Standard | IE2 | - |
| Stats/ Hr | 60 / 150 / 300 | - |
| Ambient Temperature | 50 °C | - |
| Body Enclosure | Cast Iron | - |
| Duty | S1 / S4 | - |
| Enclosure | TEFC | - |
| Insulation class | F Class | - |
| Phase | 3 Phase Motor | - |
| IP degree of protection | IP55 | - |
| Terminal Box Location | TOP | - |
| Voltage | 415 V +-10% | - |
| Frequency | 50 Hz +-5% | - |
| Motor Name | PRICE & AVAILABILITY |
|---|---|
| BHARAT BIJLEE MAKE BRAKE MOTOR 0.37 KW 0.5 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE BRAKE MOTOR 0.55 KW 0.75 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE BRAKE MOTOR 0.75 KW 1 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE BRAKE MOTOR 1.1 KW 1.5 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE BRAKE MOTOR 1.5 KW 2 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE BRAKE MOTOR 2.2 KW 3 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE BRAKE MOTOR 3.7 KW 5 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE BRAKE MOTOR 5.5 KW 7.5 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
| BHARAT BIJLEE MAKE BRAKE MOTOR 7.5 KW 10 HP, 1500 RPM, B3 MOUNTING, 415 VOLT, 50 Hz, 3 PHASE. | ENQUIRE NOW |
